C++ Random Learning Notes


Note: This is still work in progress.

There is a plenty of (free) resources available to learn C++. Here I’m trying to consolidate a few learnings and notes that I found it useful for myself. Most of them are curiosity that I had throughout my journey and I decided to write about it. I believe this is a good way to consolidate and review the content. Everything here is based on multiple sources, including books, courses, and articles. I have been perusing some files from libc++ (LLVM’s C++ standard library used by clang) [1] and libstdc++ (GCC’s library) [2] to understand how things work under the hood. I called it random because there is no specific order or structure to the topics covered. Sometimes I just feel like writing about something I found interesting.

ABI

ABI stands for Application Binary Interface. It is a low-level interface between two program modules, often between compiled code and the operating system or between different compiled modules.

Stack and Heap Allocation in C++

In C++, there are two main ways to allocate memory for variables: stack allocation and heap allocation.

Stack Allocation

Stack allocation is used for local variables and function parameters. Usually, when a function is invoked, its arguments are typically passed using registers. If there are more arguments than available registers or if specified by the Application Binary Interface (ABI), they may be passed using the stack. In this case, a new stack frame is created on the call stack to hold the function’s local variables and parameters. The stack frame is automatically cleaned up when the function returns, and the memory is reclaimed. [3]

Heap Allocation

Heap allocation is used for dynamic memory allocation, where memory is allocated at runtime. One way to allocate memory on the heap is by using the new operator. When you use new, it allocates memory from the heap and returns a pointer to the allocated memory.

RAII

RAII stands for Resource Acquisition Is Initialization. It is an idiom where you tie the lifetime of a resource to the lifetime of an object. This a pattern that you must implement. The core idea is:

Example

class FileHandler {
private:
    FILE* fp;

public:
    FileHandler(const char* filename) {
        fp = fopen(filename, "r");
        if (!file) {
            throw std::runtime_error("Failed to open file");
        }
    }

    // close the file, freeing the resource when
    // the object goes out of the scope
    ~FileHandler() {
        if (file) {
            fclose(fp);
        }
    }

    // prevent copying to avoid double-free
    FileHandler(const FileHandler&) = delete;
    FileHandler& operator=(const FileHandler&) = delete;
};

Virtual Tables

Dispatching refers to finding the right function to call. When you define a method inside a class, the compiler will execute every time you call that method. However, if you define a method as virtual, the compiler will create a table since it is not known at compile time which method to call. This table is called ‘vtable or virtual table`. It’s how C++ implements polymorphism. Each class with virtual functions has its own vtable.

Example:

class Animal {
    public:
        virtual void speak() { ... }
        virtual void move() { ... }
};

class Dog : public Animal {
    public:
        void speak() override { ... }
};

When you call animal_ptr->speak(), the compiler will:

  1. Look up the vtable for the Animal class.
  2. Find the entry for the speak method.
  3. Call the speak method for the Dog class.

Move Semantics and Perfect Forwarding

C++ 11 introduced move semantics which was one of the most influential features. The fountation of move semantics is distinguishing expressions that are rvalues from those that are lvalues. lvalue (left value) is an expression that has an identifiable memory location. You can take its address. lvalue has a name you can refer to later. On the other hand, rvalue is a temporary value that doesn’t have a persistent memory location. You cannot take its address. rvalue is temporary, about to be destroyed.

Move semantics allow compilers to be able to replace expensive copy operations with less expensive moves. Move constructors and move assignment operators offers control over semantics of moving. It also enables the creation of move-only types: std::unique_ptr, std::thread, std::promise, std::mutex, std::lock_guard, std::fstream, etc.

Perfect forwarding allows you to write function templates that forward their arguments to another function while preserving the value category (lvalue or rvalue) of those arguments. Consider the following problem:

void process(std::string& s) { ... }      // (1) lvalue reference overload
void process(std::string&& s) { ... }     // (2) rvalue reference overload

template <typename T>
void wrapper(T arg) {
    process(arg); // Problem: arg is always an lvalue here
}

std::string str = "Hello";
wrapper(str);                  // Calls process(std::string& s) - correct
wrapper(std::string("World")); // Also calls process(std::string& s) - wrong

In this example, the temporary std::string("World") is an rvalue, but when passed to wrapper, it becomes an lvalue. Perfect forwarding solve this problem with std::forward<T>(arg). It casts arg back to its original value category.

template<typename T>
void wrapper(T&& arg) {            // T&& is a forwarding reference
    process(std::forward<T>(arg)); // Perfectly forwards arg
}

wrapper(str);                   // Calls lvalue - correct
wrapper(std::string("World"));  // Calls rvalue - correct

The template parameter T&& bind to both lvalues and rvalues, making it a forwarding reference. [4] [5]

std::move()

std::move is a standard library function that performs an unconditional cast to an rvalue [6].

Function Objects

Smart Pointers

What is the problem with raw pointers? If you allocate memory using new, you need to remember to delete it. That is the first thing that comes to mind. However, there are other problems with raw pointers:

Smart pointers are one way to address these issues. C++ 11 introduced smart pointers, which are wrappers around raw pointers. There are three types of smart pointers [7]:

std::unique_ptr

unique_ptr is a smart pointer that owns a dynamically allocated object exclusively. It makes sure that only one copy of the object exists. They are the same size of raw pointers and for most of the operations they execute exactly the same instructions. An unique pointer can be moved but cannot be copied.

std::shared_ptr

An object accessed via shared_ptrs has its lifetime managed by the objects point to it via reference counting. When the last shared_ptr pointing to an object is destroyed or reset, the object is deleted. This is similar to garbage collection in other languages, but it is deterministic and happens immediately when the last reference is gone.

std::weak_ptr

This is a special case smart pointer that doesn’t affect the reference count of a shared_ptr. It holds a non-owning (“weak”) reference to an object that is managed by shared_ptr, and it doesn’t increase the reference count.

C++ 11 also introduced std::auto_ptr but it was completely deprecated.

Writing a custom smart pointer

Before writing custom smart pointers, I want to explain some underlying concepts behind some chunks of code.

Custom Unique Pointer

We want to create an object that takes ownership of another object preserving some semantics.

UniquePtr<MyClass> myClass(new MyClass());
UniquePtr<int> objPtr(new int());

In this case, myClass is a unique pointer that wraps up a raw pointer returned from new MyClass(). Fun fact: new int() initializes with 0 whereas new int initializes with garbage.

So we start our custom unique pointer class with the following:

template<typename T>
class UniquePtr {
private:
    T* ptr;

public:
    explicit UniquePtr(T* p) : ptr(p) {}
};

We simply create a pointer ptr that will hold the raw pointer. The constructor will take the pointer returned from new and store it in ptr.

Why the explicit keyword?

First, we have to understand implicity conversions. Consider the following:

UniquePtr<int> p(new int(42)); // explicit
UniquePtr<int> p1 = new int(42); // implicit

For the implicit case, the compiler will automatically convert the new int(42). Behind the scenes, this should be equivalent to:

UniquePtr<int> p1 = UniquePtr<int>(new int(42));
//                  ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
//                  implicit conversion happening here

So, why bother?

This may cause some subtle problems regarding ownership. For example:

int* rawPtr = new int(42);
UniquePtr<int> objPtr = rawPtr;
*rawPtr = 100;

Here, rawPtr is created and the whole idea of unique pointer is to take control of this object. However, it is still acessible and can even be modified.

Another issue is to accidentally give away ownership. Example:

void process(UniquePtr<int> u) {
    // deletes when done
}

int* rawPtr = new int(42);
process(rawPtr);

process takes a UniquePtr<int> as a parameter, but in the example, it is being passed a raw pointer. The compiler will implicitly convert the raw pointer to a UniquePtr<int>, and the ownership of the raw pointer is given to the process function. When process finishes, it will delete the pointer, and rawPtr will become a dangling pointer.

When using the keyword explicit, the compiler will not allow implicit conversions, raising an error during compilation.

Copy semantics

Unique pointer cannot be copied. So the copy constructor and copy assignment must be deleted. You want to avoid the following situation:

UniquePtr<int> p1(new int(42));
UniquePtr<int> p2(p1); // copy constructor
UniquePtr<int> p3 = p1; // this is also a copy constructor, NOT a copy assignment

p3 = p1; // this is a copy assignment

You shouldn’t be allowed to write the code above since unique pointers are obviously unique. Note that the second example UniquePtr<int> p3 = p1 is also a copy constructor, not a copy assignment. This is because p3 is being created in this line, so it is a copy constructor. So we delete the copy constructor and copy assignment operator:

UniquePtr(const UniquePtr&) = delete;

Why const? : reference const in C++ will bind both to const and non-const, whereas without const would miss const objects. Why not UniquePtr& something? : because you are deleting, so it doesn’t make any difference.

For the copy constructor (in our example p3 = p1), we delete by defining the following:

UniquePtr& operator=(const UniquePtr&) = delete;

From the previous example, this captures the reference from the left side (p3) and the right side (p1) by const reference, as we explained before.

Move semantics

We want to be able to move unique pointers. Moving means transferring ownership from one unique pointer to another. This is done using move constructor and move assignment operator. In this example, we initialize a unique pointer with integer object and then we transfer the ownership to the new created unique pointer p2.

UniquePtr<int> p1(new int(42));
UniquePtr<int> p2(std::move(p1));

In this case, p2 should now take ownership of our defined pointer T* ptr, and p1 should be left in an empty state. Here is how we should handle the move constructor:

// move constructor
UniquePtr(UniquePtr&& other) : ptr(other.ptr) noexcept {
    other.ptr = nullptr;
}

The rvalue reference && binds to the rvalue produced by std::move(), allowing the move constructor to transfer ownership of the resource from the source object. std::move() doesn’t move anything, it is only a simple cast that converts its argument into an rvalue.

For move assingment operator, we want to perform the following:

UniquePtr<int> p1(new int(42));
UniquePtr<int> p2(new int(99));
p1 = std::move(p2);

It can be implemented as follows:

UniquePtr& operator=(UniquePtr&& other) noexcept {
    if (this != &other) {
        delete ptr;
        ptr = other.ptr;
        other.ptr = nullptr;
    }
    return *this;
}

We cleaned up the current resource (delete ptr) and replace it by the new assigned resource. We also set the other.ptr to nullptr to avoid double-free.

Destructor will simply remove the resource when the unique pointer goes out of scope:

~UniquePtr() {
    // no need for this if since delete nullptr is safe in C++
    if (ptr != nullptr) {
        delete ptr;
    }
}

This is the basic implementation of a custom unique pointer. We can also add get, release, reset and dereference methods to make it more complete. For instance, we want to implement the following:

uniq_ptr->
*uniq_ptr // de-reference operator
uniq_ptr.get() // returns a raw pointer

where these should return the object that belongs to this unique pointer. That can be implemented as:

// implementing opertor '->'
// '->' expects a pointer T*
// ptr is already a pointer, so return ptr
T* operator->() { return ptr; }

// implements de-reference operator *uniq_ptr
// we expect the object, so we return the reference
// we need to dereference ptr by returning *ptr
T& operator*() { return *ptr; }

// simply return this pointer
T* get() const { return ptr; }

reset destroy the current object and optionally take ownership of a new object. release gives up ownership of the object without destroying it. They can be implemented as follows:

void reset(T* newPtr = nullptr) {
    delete ptr;
    ptr = newPtr;
}

T* release() {
    T* temp = ptr;
    ptr = nullptr;
    return temp;
}

We may also want to implement bool and comparison operators. For example:

// bool operator
if (uniqPtr) {
...
}

if (uniqPtr == otherPtr) {
...
}

explicit operator bool() const { return ptr != nullptr; }
bool operator==(const UniquePtr& other) const {
    return ptr == other.ptr;
}

Here is the complete example:

template<typename T>
class UniquePtr {
private:
   T* ptr;

public:
    // Initialization
    explicit UniquePtr(T* p) : ptr(p) {}

    // Destructor
    ~UniquePtr() {
        delete ptr;
    }

    // Copy semantics: unique pointers cannot be copied
    UniquePtr(const UniquePtr&) = delete;
    UniquePtr& operator=(const UniquePtr&) = delete;


    // Move semantics
    UniquePtr(UniquePtr&& other) : ptr(other.ptr) noexcept {
       other.ptr = nullptr;
    }
    UniquePtr& operator=(UniquePtr&& other) noexcept {
        if (this != &other) {
            delete ptr;
            ptr = other.ptr;
            other.ptr = nullptr;
        }
        return *this;
    }

    // release semantics: giev up ownership of the current object
    // and return the released object pointer
    T* release() {
        T* temp = ptr;
        ptr = nullptr;
        return temp;
    }

    // reset semantics: destroy the owned object and replace
    // by another if passed
    void reset(T* newPtr = nullptr) {
        delete ptr;
        ptr = newPtr;
    }

    // other operators
    T* operator->() { return ptr; }
    T& operator*() { return *ptr; }
    T* get() { return ptr; }

    // comparison
    explicit operator bool() const { return ptr != nullptr }
    bool operator==(const UniquePtr& other) const {
        return ptr == other.ptr;
    }
};

std::make_unique

Consider the following example:

auto* obj = new int(42);
std::unique_ptr<int> p1(obj);
std::unique_ptr<int> p2(obj);

The code above contains the problem of double ownership that can cause undefined behaviour when trying to delete the same object twice. When p1 or p2 is out of the scope, the destructor will be called and the object will be deleted. After deletion, the pointer will remain dangling, and when the second unique pointer tries to delete the same object, it will lead to undefined behavior. When calling delete on a pointer, it frees the memory, but the pointer still points to the same memory location.

C++ 14 introduced std::make_unique, which is a safer and more efficient way to create unique pointers. It eliminates the possibility of double ownership by ensuring that the object is created and owned by a single unique pointer from the start.

####

class SharedPtr() {
};

Threads

Mutex

Mutex (“mutual exclusion”) is the well-known synchronization primitive to prevent multiple threads from accessing a shared resource simultaneously. In C++, mutexes are provided by the <mutex> header. The most common mutex types are:

Example: simple mutex & lock_guard

std::mutex m;
int shared_counter = 0;

void increment() {
    mtx.lock();
    ++shared_counter;
    mtx.unlock();
}

// using lock_guard
// It automatically releases the lock when it goes out of scope
void increment() {
    std::lock_guard<std::mutex> lock(mtx);
    ++shared_counter;
}

Example: timed mutex

std::timed_mutex mtx;
int shared_counter = 0;

void worker(int id) {
    if (mtx.try_lock_for(std::chrono::milliseconds(100))) {
        // lock acquired
        ++shared_counter;
        mtx.unlock();
    } else {
        std::cout << "Thread " << id << " could not acquire the lock within 100ms\n";
    }
}

Example: shared mutex

std::shared_mutex smtx;
int shared_data = 0;

void reader() {
    smtx.lock_shared();
    // do some read-only operations
    smtx.unlock_shared();
}

void writer() {
    smtx.lock();
    // do some write operations
    smtx.unlock();
}

Example: unique_lock

std::mutex mtx;

void simple_unique_lock() {
    // this locks immediately, like lock_guard
    std::unique_lock<std::mutex> lock(mtx);
    // do some operations
    // you can unlock if needed or it also unlocks when going out of scope
    lock.unlock();
}

void defer_lock_example() {
    // does not lock immediately
    std::unique_lock<std::mutex> lock(mtx, std::defer_lock);
    lock.lock();
}

Atomics

An atomic operation is an operation that appears to execute entirely or not at all from the perspective of other threads or processes. This means that intermediate states of the operation are not visible to other threads. C++ provides atomic operations through the <atomic> header. Before entering the usage of this library, lets understand the problem it solves.

Consider th following multithreaded code:

volatile int data = 0;
volatile int ready = 0;

// Thread 1: Producer
data = 42;
ready = 1;

// Thread 2: Consumer
while (ready == 0) {}
printf("Data: %d\n", data);

There are multiple serious problems with this code, assuming a multithreaded execution. First, this code is not linearziable [8]. The consumer thread may sequence the operations in a different order. It may read data before ready is set to

  1. Second, there is no guarantee that the writes to data and ready will be visible to the consumer thread in the order they were made. This is due to compiler and CPU optimizations that may reorder instructions for performance reasons.

Note: I had to use volatile to “fool” the compiler. Otherwise, when compiling with -O3 flag, it knows this is not a multithread application and it doesn’t even respect the fence. Volatile means the variable is guaranteed to be read from the memory every time it is accessed, and not cached in a register.

Memory Ordering

Example: implementing my own mutex

Usuaully, it is not a good idea to implement your own mutex. At least, I haven’t beaten the performance of the standard library implementation. For learning purpose, the implementation using spinlock is quite straightforward. The following example is a mutex lock using spinlock with exponential backoff:

class SpinlockMutex {
private:
    std::atomic<bool> locked(false);
    static constexpr int MAX_BACKOFF = 1024;

public:
    void acquire() {
        bool expected = false;
        int backoff = 1;
        while(!locked.compare_exchange_weak(expected, true, std::memory_order_acquire)) {
            expected = false; // reset after failure
            for (int i = 0; i < backoff; ++i) {

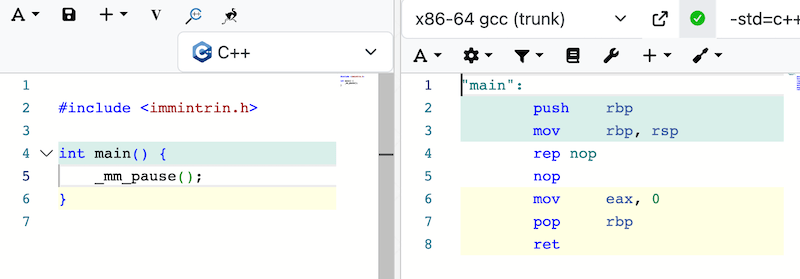

                _mm_pause();
            }
            backoff = std::min(backoff * 2, MAX_BACKOFF);
        }
    }

    void release() {
        locked.store(false, std::memory_order_release);
    }
};

As a side note, the initialization with () won’t work on C++ 17 and prior. Instead, it should be initialized with {} (std::atomic<bool> locked{false}).

There are two main interfaces, acquire and release. The release method simply sets the atomic boolean locked to false, indicating that the mutex is now available. The acquire method tries to set locked to true using compare_exchange_weak, which is an atomic operation that compares the current value of locked with expected. If they are equal, it sets locked to true and returns true. If they are not equal, it updates expected with the current value of locked and returns false. That’s why we need to reset expected to false. We use a loop that represents our spinlock. If the compare_exchange_weak fails, we perform an exponential backoff by pausing for a certain number of iterations before retrying. This helps to reduce contention and improve performance under high load.

_mm_pause() is an intrinsic that provides a hint to the processor that we are in a spin-wait loop. It can help improve performance by reducing power consumption and improving the efficiency of the spin-wait loop. Intrinsics are low-level functions that provide direct access to CPU instructions, so you don’t have to directly write assembly code. It is a portable way to access specific CPU features. There is a nice list of intel intrinsics here, which includes _mm_pause() [9].

As I a just bit curious about _mm_pause(), this intrinsics translates to rep nop, which is actually the pause instruction.

large Figure 1: REP NOP instruction on godbolt.org

Example: implementing my own lock_guard

Lambda Expressions

Future and Promises

Futures/Promises are a simpler thread-based mechanism for one time async results. They were introduced in C++ 11 and are components of <future> header. A std::promise acts as a producer, and it is responsible for setting the result of an asynchoronous operation. A std::future acts as a consumer, and it represents a placeholder for a value that will be available at some point in the future.

Example:

std::promise<int> prom;
std::future<int> fut = prom.get_future(); // this is non-blocking

std::thread t([&prom]() {
    // do some work
    prom.set_value(42);
});

int result = fut.get(); // this will block until the value is set
t.join();

Co-routines

Coroutines were introduce in C++ 20 and allows functions to suspend and resume their execution. This is useful for asynchronous and concurrent code in a more sequential manner. Coroutines are defined using:

co_await: pauses the coroutine until an awaited operation (often an asynchronous one) completes, then resumes execution. co_yield: produces a value and suspends the coroutine, allowing it to act as a generator for sequences of values. co_return: returns a final value and terminates the coroutine

Template Metaprogramming

SFINAE

Other

C++ Vexing Parse

https://www.youtube.com/watch?v=ByKf_foSlXY

Spaceship operator

C++ 20 introduced provides an operator called spaceship operator (<=>) that allows to write one function to take care of all comparison operations [10]. This is useful when implementing custom types that need to be compared. The spaceship operator returns a value that indicates the result of the comparison, which can be one of five categories: strong_ordering, weak_ordering, partial_ordering, strong_equality, or weak_equality. Let’s start with an example before examing each of these:

struct IntWrapper {
    int value;
    constexpr In
}

https://devblogs.microsoft.com/cppblog/simplify-your-code-with-rocket-science-c20s-spaceship-operator/

Composable Range Views

C++ 20 introduced Standard Library Ranges, which is a way to transform and filter data without creating intermediate copies. Views are lightweight objects that represent a sequence of elements (a range) without owning the underlying data. An interesting aspect of views is composability. You can chain multiple views using pipe operator to create transformations. Views are designed to be efficient. They typically don’t allocate memory or copy data.

A common example is creating a simple string split function using views:

auto split(std::string_view str, char delimiter) {
    return str | std::views::split(delimiter)
               | std::views::transform([](auto&& subrange) {
                    return std::string_view(subrange.begin(), subrange.end());
                });
}

std::string data = "a,b,c";
auto parts = split(data, ',');
for (auto word : parts) {
    // use word
}

When the function is called, std::string converts data to std::string_view. The string view class is very lightweight. The object is 16 bytes, defined by basic_string_view class [11]

private:
    size_t        _M_len;      // Just a size_t (8 bytes on 64-bit)
    const _CharT* _M_str;      // Just a pointer (8 bytes on 64-bit)
};

It contains a size_t (8 bytes on 64-bit) and a _CharT pointer (8 bytes on 64-bit). A _CharT is a character type, which can represent a char, wchar_t, char8_t, char16_t, or char32_t.

An interesting point is that the split function returns a view, which is a lazy, meaning no computation is performed until the view is iterated over.

Similar to Unix pipes, the pipe operator (|) is used to chain multiple views together. So str is first passed to std::views::split, which creates a view that splits the string by the specified delimiter. Then, the result is passed to std::views::transform, which applies a transformation function to each subrange produced by the split operation. The transformation function converts each subrange into a std::string_view.

References

  1. [1]Llvm, “LLVM/LLVM-project: The LLVM Project is a collection of modular and reusable compiler and toolchain technologies.,” GitHub. [Online]. Available at: https://github.com/llvm/llvm-project.
  2. [2]The GNU C++ library. [Online]. Available at: https://gcc.gnu.org/onlinedocs/libstdc++.
  3. [3] reductor’s blog. Aug. 2023, [Online]. Available at: https://reductor.dev/cpp/2023/08/10/the-downsides-of-coroutines.html.
  4. [4] C++ and Beyond. Dec. 2011, [Online]. Available at: https://cppandbeyond.com/2011/04/25/session-announcement-adventures-in-perfect-forwarding.
  5. [5]R. Chen, “Perfect forwarding forwards objects, not braced things that are trying to become objects,” The Old New Thing. Jul. 2023, [Online]. Available at: https://devblogs.microsoft.com/oldnewthing/20230727-00/?p=108494.
  6. [6]LIBSTDC++: move.h source file. [Online]. Available at: https://gcc.gnu.org/onlinedocs/libstdc++/latest-doxygen/a00386_source.html.
  7. [7]S. Meyers, Effective modern C++ 42 specific ways to improve your use of C++11 and C++14 Scott Meyers. O’reilly, 2015.
  8. [8]M. P. Herlihy and J. M. Wing, “Linearizability: a correctness condition for concurrent objects,” ACM Trans. Program. Lang. Syst., vol. 12, no. 3, pp. 463–492, Jul. 1990, doi: 10.1145/78969.78972.
  9. [9]Intel Intrinsics Guide. [Online]. Available at: https://www.intel.com/content/www/us/en/docs/intrinsics-guide/index.html.
  10. [10]ISO/IEC JTC1/SC22/WG21 - The C++ Standards Committee - ISOCPP. [Online]. Available at: https://www.open-std.org/jtc1/sc22/wg21/.
  11. [11]LIBSTDC++: String_view source file. [Online]. Available at: https://gcc.gnu.org/onlinedocs/libstdc++/latest-doxygen/a00215_source.html.
